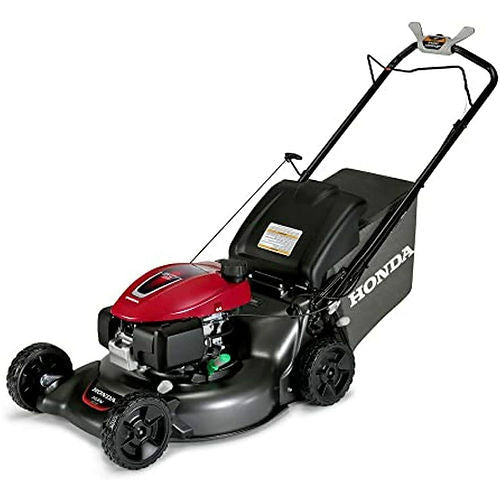

The Honda Self-Propelled 3-in-1 Variable Speed Lawn Mower with New GCV 170 engine and auto choke offers a simple, adaptable and reliable design. It efficiently adapts the mowing speed to match your stride for ultimate comfort. Easily mulch, bag or discharge without the use of tools using a simple clip director knob.
- For questions about service and repair, please call Honda at 770-497-6400 or reference the Service & Repair document
- Smart drive intuitive, variable speed control while mowing, 5 adjustable positions for user comfort

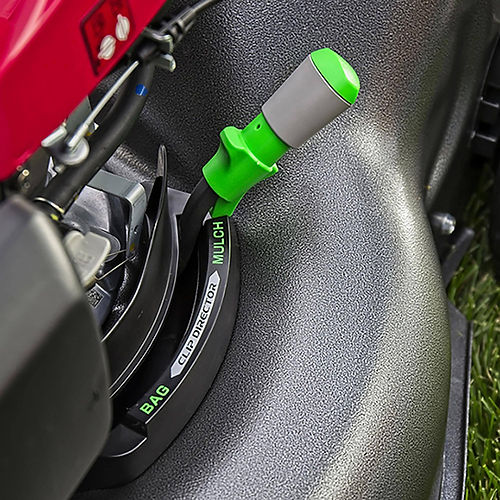

- 3-in-1 system with clip director simply slide the clip director for mulching, bagging or discharging versatility, no attachments required

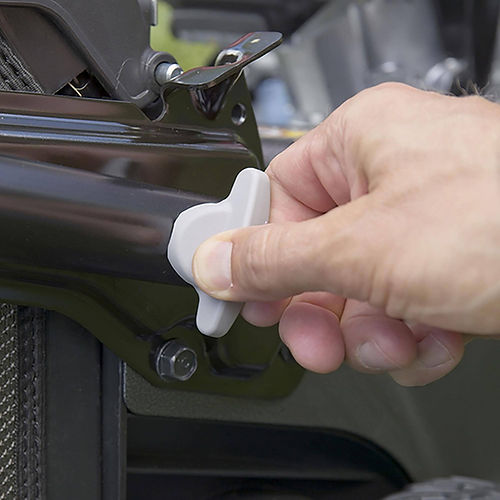

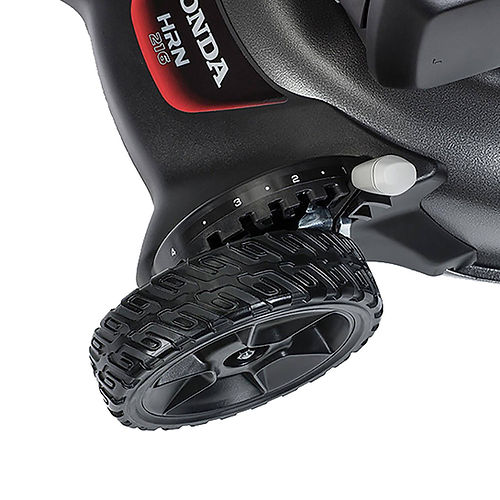

- Dual-lever height adjustment system user-friendly front and rear levers conveniently adjust to 7 cutting heights
- Honda GCV170 engine reliable, easy starting power to tackle the toughest mowing conditions

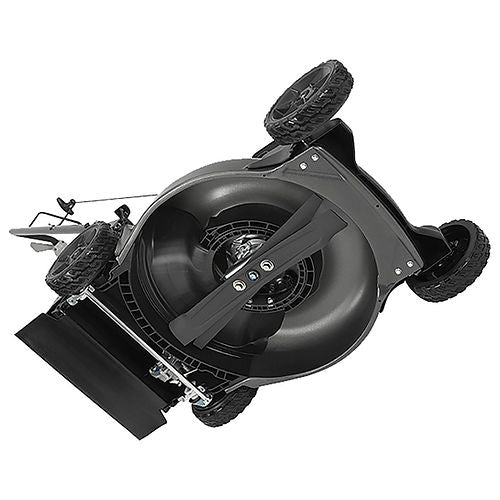

- Microcut twin blade system stacked and offset twin blade design provides superior cut quality and smaller clippings for better mulching and bagging
Specifications
Dimensions: H 40.8 in, W 22.6 in, D 61 in
Dimensions
| ASSEMBLED DEPTH (IN.) |
61 in |
ASSEMBLED HEIGHT (IN.) |
40.8 in |
| ASSEMBLED WIDTH (IN.) |
22.6 in |
BLADE LENGTH (IN.) |
21 in |
| CUTTING WIDTH (IN.) |
21 inches |
FRONT WHEEL SIZE (IN.) |
8 |
| MOWER DECK WIDTH (IN.) |
21 |
REAR WHEEL HEIGHT (IN.) |
High Wheel |
| REAR WHEEL SIZE (IN.) |
8 |
|
|
Details
| ASSEMBLY REQUIRED |
Yes |
CA (CARB) COMPLIANT |
CARB Compliant |
| CUTTING HEIGHT OPTIONS |
7-position |
CUTTING OPTIONS |
Bag, Mulch, Rear-Discharge |
| DECK MATERIAL |
16 Gauge Steel |
DECK TYPE |
Stamped |
| DRIVE TYPE |
Rear-wheel Drive |
ENGINE DISPLACEMENT (CC) |
170 |
| ENGINE MAKE |
Honda Engine |
ENGINE TORQUE (FT.-LB.) |
8.2 |
| FEATURES |
Bagger, Foldable handle, Mulch Switch, Mulching Lawn Mower, Tool-free adjustments |
FUEL TANK CAPACITY (GALLONS) |
0.25 gal |
| INCLUDED |
Engine oil |
LAWN MOWER TYPE |
Self-Propelled Lawn Mower |
| MAXIMUM CUTTING HEIGHT (IN.) |
7 in |
MINIMUM CUTTING HEIGHT (IN.) |
1.8 |
| MOWER SIZE TYPE |
Standard |
NUMBER OF BLADES |
2 |
| NUMBER OF HANDLEBAR POSITIONS |
5 |
OIL CAPACITY (OZ.) |
12 |
| POWER TYPE |
Gas |
PRODUCT WEIGHT (LB.) |
77.8 |
| RECOMMENDED OIL TYPE |
SAE 10W-30 |
RECOMMENDED TERRAIN |
Flat, Sloped, Uneven |
